Dab tsi yog PCB tsim thiab sib dhos?
PCB kev tsim thiab kev sib dhos yog tias tus neeg muag khoom yuav muab cov kev pabcuam PCB, thiab sib sau ua ke PCB los ntawm kev sib txuas cov khoom siv hluav taws xob mus rau lub rooj tsav xwm ntawm nws tus kheej.
Ntawm PCBFuture, peb muab ob qho tib siprinted Circuit Board los ua kecov kev pabcuam thiab luam tawm Circuit Board manufacturing kev pabcuam.Peb xyuas kom meej tias koj xa cov sijhawm teem sijhawm thiab tau txais tus nqi zoo tshaj.Txhua PCBs ua tau raws li tus qauv siab tsim los ntawm IPC 600. Raws li PCBFuture yog IPC tus kws qhia ntawv pov thawj ntawm IPC a-610, peb paub qhov tseem ceeb ntawm lub rooj tsavxwm tsis zoo thiab cov yam ntxwv uas tuaj yeem txhim kho PCB sib dhos ua haujlwm.

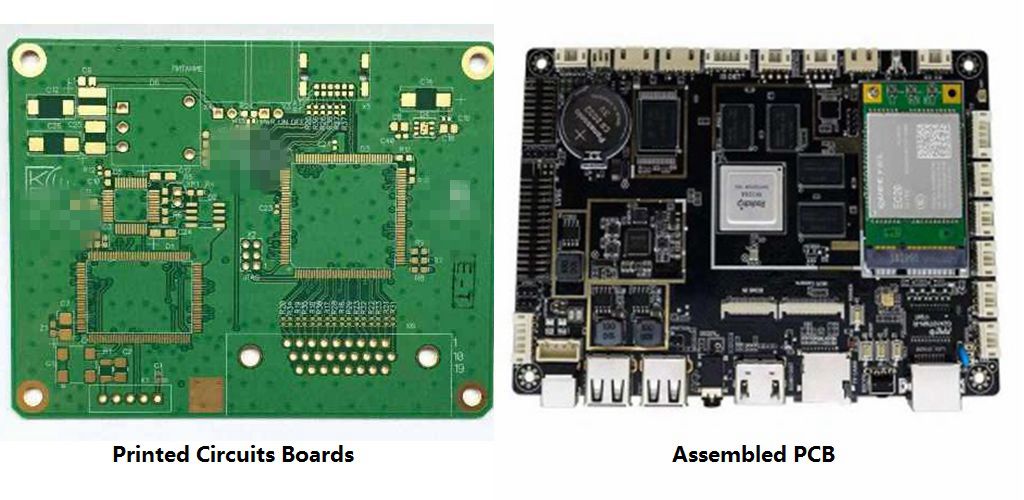

Dab tsi yog qhov txawv ntawm PCB manufacturing thiab PCB Assembly?
PCB (luam tawm Circuit Board) yog ib lub rooj tsavxwm uas siv cov khoom siv hluav taws xob, cov ntaub qhwv, thiab lwm yam khoom siv los ntawm cov ntawv ci tooj liab laminated rau ntawm cov khoom siv hluav taws xob tsis zoo rau cov khoom siv hluav taws xob sib txuas.PCB tuaj yeem ua ib sab (ib txheej tooj liab), ob sab (ob txheej tooj liab) lossis ntau txheej ( txheej txheej thiab txheej sab hauv).Cov conductors ntawm cov khaubncaws sab nraud povtseg yog txuas los ntawm qhov (plated los ntawm qhov).Multilayer PCB tso cai rau cov khoom siv ntau dua thiab tsim kev nyuaj.
PCBA (luam tawm Circuit Board sib dhos) yog ib hom PCB uas txhua yam khoom siv thiab cov khoom siv tau welded thiab ntsia ntawm PCB.Tam sim no nws tuaj yeem ua tiav cov haujlwm hauv hluav taws xob ntawm nws tus qauv tsim.

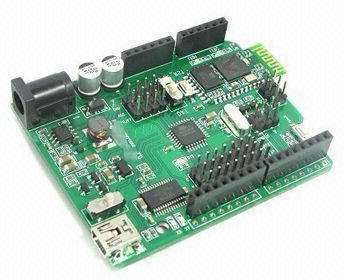

Puas yog PCBFuture muab PCB tsim thiab kev pabcuam sib dhos?
PCBFuture tuaj yeem muab PCB tsim thiab kev pabcuam sib dhos.Peb muaj cov neeg siv khoom los ntawm kev lag luam sib txawv ntawm cov nqi-zoo, zoo, xa khoom thiab lwm yam yuav tsum tau ua.Los ntawm PCB layout mus rau PCB prototyping, kev tsim khoom loj, thiab tom qab ntawd PCB sib dhos, cov kev pabcuam hauv lub thawv hluav taws xob, peb cov ntawv luam tawm Circuit Board tau siv dav hauv kev siv tshuab, kev kho mob, tsheb, kev sib txuas lus, kev lag luam thiab cov khoom siv hluav taws xob.
Peb tau koom nrog cov lag luam hauv qab no: hloov pauv PCB, kev cai PCB, qauv PCB, turnkey PCB los ua ke,ceev tig pcb sib dhos, hluav taws xob PCB sib dhos, me me batch PCB los ua ke, thiab lwm yam.
PCBFuture muaj kev tswj xyuas zoo thiab tag nrho cov ntawv pov thawj xws li TS16949, UL, RoHS, CE, ISO, thiab lwm yam.. Rau PCB, peb muaj Flying Probe Test thiab E-Testing.Rau PCBA, peb muaj IQC, AOI, Function Test, QA.Cov no yog cov tseem ceeb tab sis tseem ceeb heev rau PCB kev lag luam.
Raws li qhov nrov tshaj plaws PCB manufacturing thiablub tuam txhab sib dhosnyob rau hauv Suav teb, peb tau muab tag nrho-spec hluav taws xob tsim kev daws teeb meem rau 13 xyoo kom tau raws li cov kev xav tau ntawm Suav lag luam.

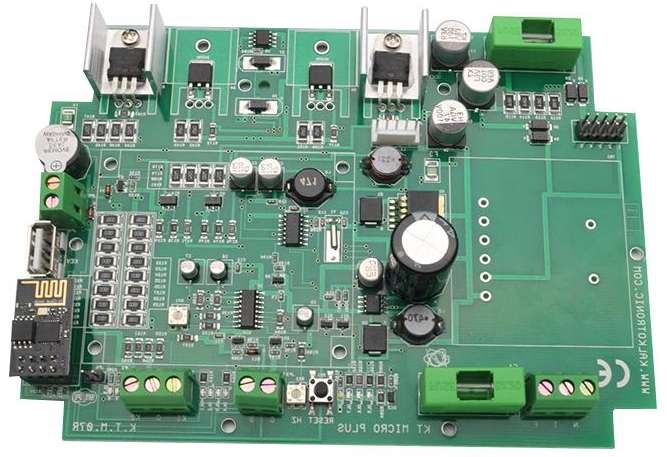

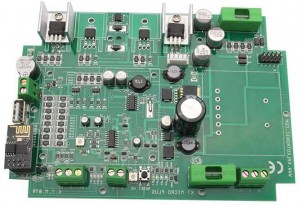

Vim li cas thiaj xaiv PCBFuture rau koj lub PCB tsim thiab kev pabcuam sib dhos?
1. Tsis tshua muaj siab precision thiab precision-Peb cov qauv ua tau zoo heev hauv qhov raug thiab tuaj yeem ua tau raws li cov neeg siv khoom tshwj xeeb.Qhov no yog vim peb coj zoo thiab cov ntsiab lus tiag tiag.
2. Ceev tig-peb nkag siab tus nqi ntawm cov neeg siv khoom lub sijhawm.Yog li ntawd, peb siv zog los tsim koj tus qauv ntawm tus nqi tsim nyog.Yog li ntawd, peb cov qauv kev sib dhos ceev ceev PCB tuaj yeem txo koj lub sijhawm tos los ntawm ob peb lub lis piam mus rau ob peb feeb.
3. Tus nqi qis heev-peb muaj ib txoj hauv kev los pab koj kom tus nqi qis thiab pheej yig.Yog li ntawd, peb yuav ua kom tiav koj qhov project nrog cov peev nyiaj tsim nyog.
4. Kev kho qhov yuam kev-Peb cov qauv PCB tseem ceeb heev kom pom qhov tsis xws luag, yog li nws tuaj yeem zam qhov kev ua tsis tiav loj tom qab.Kev tshem tawm cov teeb meem no sai li sai tau tuaj yeem txuag koj lub sijhawm thiab nqi ntau
5. Online ceev quotation-koj tuaj yeem thov PCB prototypes.Koj tsuas yog yuav tsum xa cov qauv PCB thiab tau txais cov txiaj ntsig.
6. Cov qauv kuaj ua ntej tag nrho cov khoom - Peb tso cai rau koj los kuaj cov qauv qauv thiab paub meej tias lawv puas ua haujlwm raws li qhov xav tau.
Kev pabcuam peb tuaj yeem muab tau:
1. Nto xov: HASL Lead lossis Lead dawb, ENIG, Im Silver, OSP, Kub plated, thiab lwm yam
2. Ib leeg thiab ob sab SMT / SMD.THT (los ntawm qhov sib dhos technology).SMT & los ntawm qhov sib dhos.
3. Kev tshuaj xyuas:
Kev kuaj pom pom: kev kuaj xyuas zoo.
FAI: tag nrho cov kev kuaj xyuas zoo siv rau thawj PCB kom dhau los ntawm txhua theem ntawm kev tsim khoom.
X-ray Inspection: xyuas rau BGAs, QFN thiab liab qab Circuit Court boards.
AOI Kev Xeem: kuaj xyuas cov tshuaj txhuam hniav, 0201 cov khoom, cov khoom ploj thiab cov polarity.
3D AOI Kev Xeem: kuaj xyuas cov khoom SMT uas ploj lawm thiab tsis raug rau hauv peb qhov ntev.
3D SPI Kev Ntsuas: ntsuas qhov tseeb ntim ntawm cov tshuaj nplaum rau SMT sib dhos.
ICT (In-Circuit Test).
Kev xeem ua haujlwm (Ua raws li koj cov txheej txheem xeem).
Txij li thaum PCBFuture tsim, peb tau koom tes nrog ntau lub tuam txhab hauv tsev thiab txawv teb chaws nrog lub tswv yim ntawm qhov zoo ua ntej thiab cov neeg siv khoom yog Vajtswv uas tau ua tiav cov koob npe nrov.Peb tau txais kev ntseeg siab thiab kev txhawb nqa ntawm cov tuam txhab los ntawm ntau tshaj 40 lub teb chaws nrog cov nqi sib tw, cov khoom zoo thiab cov kev pabcuam zoo heev.
Yog tias koj muaj lus nug lossis nug, thov hu rau dawbsales@pcbfuture.com, peb yuav teb koj ASAP.
FQA rau PCB tsim thiab sib dhos
Yog lawm, peb tuaj yeem ua X-ray kuaj tom qab sib dhos rau cov khoom xws li BGA.
Peb yuav tag nrho peb cov khoom los ntawm cov neeg sawv cev zoo li DigiKey thiab Mouser.Yog li ntawd, peb tuaj yeem lav qhov zoo ntawm qhov peb siv.Peb kuj muaj lub tuam tsev tswj xyuas qhov zoo uas txheeb xyuas qhov zoo ntawm txhua qhov chaw ua ntej lawv muab tso rau hauv peb cov khoom.
Rau txhua sab uas muaj SMT lossis los ntawm lub qhov uas peb yuav tau populating:
1. Copper - rau kev txheeb xyuas qhov chaw ncoo thiab ntsuas qhov ntsuas.
2. Muab tshuaj txhuam - rau tiam stencil.
3. Txhob lo lo ntxhuav - rau kev siv tus tsim qhov chaw thiab kev sib hloov pov thawj.
Peb ua haujlwm hnyav kom paub tseeb tias tag nrho koj cov PCB xaj tau xa tuaj raws sijhawm.Muaj qee zaus, txawm li cas los xij, thaum cov neeg nqa khoom thauj muaj kev ncua sijhawm thiab / lossis ua rau cov khoom xa tuaj yuam kev.Peb khuv xim thaum qhov no tshwm sim tab sis peb tsis tuaj yeem lav lub luag haujlwm qeeb los ntawm cov neeg nqa khoom no.
Peb xaj rau koj daim nqi xaj khoom xaj xaj 5% lossis 5 ntxiv rau feem ntau cov khoom.Qee lub sij hawm peb tau ntsib nrog qhov tsawg kawg nkaus / ntau qhov kev txiav txim qhov twg cov khoom ntxiv yuav tsum tau yuav.Cov khoom no tau hais txog, thiab kev pom zoo tau txais los ntawm peb cov neeg siv khoom ua ntej xaj.
Peb muab PCB los ua ke muaj peev xwm suav nrog smt thiab dhau-qhov, ob sab smt sib dhos, kho me pcb, cable thiab hlua sib dhos thiab lwm yam.
Yog lawm, peb muab RoHS raws kev sib dhos.
Peb muab kev pabcuam ceev ceev PCB Manufacturing Services rau PCB Layout, PCB Assembly, PCB Fabrication, PCB Prototype, Electro-Mechanical Assembly, PCB Box Tsim, thiab lwm yam.
Peb muab IPC thiab ISO tus qauv PCB los ua ke.
Muaj ib qho ntawm cov yam ntxwv uas cuam tshuam ncaj qha rau tus nqi ntawm PCB los ua ke nrog rau kev siv thev naus laus zis, ib leeg lossis ob lub rooj tsavxwm, tus naj npawb ntawm qhov chaw, txheej, kev sim, kev xa khoom, thiab lwm yam.
